Send Cookie Information consent decisions to Piwik PRO using Piwik PRO SDK (for Android)

You can use the Cookie Information Mobile SDK to display a consent popup and collect user consents in your Android app. Then connect it to the Piwik PRO SDK to analyze those consent decisions and collect data based on each visitor’s consent. This integration syncs consent statuses between the Cookie Information Mobile SDK and the Piwik PRO SDK.

Note: Cookie Information and Piwik PRO use different consent types, so you’ll have to map them yourself.

Before you start

Here are a few things to know before you start:

You need an account in Cookie Information.
You need an Android app with the Piwik PRO SDK installed. See detailed instructions in Piwik PRO documentation.
You need to have the Cookie Information Mobile SDK installed. See detailed instructions in Piwik PRO documentation.
You need the user’s Visitor ID or User ID. You can ask the user to send you their visitor ID. In case of a user ID, you can set it up. See detailed instructions in Piwik PRO documentation.
Cookie Information and Piwik PRO use different consent types, so you’ll have to map them yourself.

Consent categories

Piwik PRO includes the following consent categories:

analytics
ab_testing_and_personalization
conversion_tracking
marketing_automation
remarketing
user_feedback
custom_consent

Cookie Information includes the following consent categories:

necessary (no consent required)
statistical
functional
marketing
custom

Here’s an example of consent category mapping:

Cookie Information	Piwik PRO
statistical	analytics
functional	user feedback
marketing	marketing automation
custom	custom consent

Consent values are passed to Piwik PRO using custom variables at predefined indexes:

Index	Name	Value
1	analytics	A/B testing
2	conversion tracking	marketing automation
3	remarketing	user feedback
4	custom consent	unused

Note:

Each consent category sent to Piwik PRO should return one of the following values:

"1" – consent granted
"0" – consent denied
null – category unused

A custom event is interpreted as a consent event when it includes the following values:

Category: "consent_decision"
Action:
- "no_consent" – no consents given
- "full_consent" – all consents given
- "any_consent" – at least one but not all consents
Name:
- "first_consent" – first decision
- "changed_consent" – every subsequent decision

Here’s an example of the complete implementation you can copy into your project:

private fun displayAlways(coroutineScope: CoroutineScope) {
   coroutineScope.launch {
       ConsentsUISDK.showPrivacyPopup(this@MainActivity).collect {
           it.fold(
               onSuccess = { consents ->
                       var analytics = "null"
                       var abTesting = "null"
                       var conversionTracking = "null"
                       var marketingAutomation = "null"
                       var remarketing = "null"
                       var userFeedback = "null"
                       var customConsent = "null"



                       consents.forEach { consent ->
                           val onOff = if (consent.accepted) "1" else "0"
                           when (consent.type) {
                               UIConsentType.STATISTICS -> analytics = onOff
                               UIConsentType.FUNCTIONAL  -> userFeedback = onOff
                               UIConsentType.MARKETING   -> marketingAutomation = onOff
                               UIConsentType.CUSTOM      -> customConsent = onOff
                               UIConsentType.NECESSARY, UIConsentType.PRIVACY_POLICY   -> {}
                           }
                       }

                       val action = resolveConsentDecisionAction(consents)
                       val name   = resolveConsentDecisionType(consents, applicationContext)

                       TrackHelper.track()
                           // Index 1: [analytics, ab_testing_and_personalization]
                           .variable(1, analytics, abTesting)
                           // Index 2: [conversion_tracking, marketing_automation]
                           .variable(2, conversionTracking, marketingAutomation)
                           // Index 3: [remarketing, user_feedback]
                           .variable(3, remarketing, userFeedback)
                           // Index 4: [custom_consent, unused]
                           .variable(4, customConsent, "null")
                           // Consent Event
                           .event("consent_decision", action)
                           .name(name)
                           .with(tracker)
               },
               onFailure = { throwable ->
                   Log.d(TAG, throwable.message ?: "no message")
                   // Track consent popup error
                   TrackHelper.track().event("Consent", "Display Error")
                       .name(throwable.message ?: "Unknown error")
                       .with(tracker)
               }
           )
       }
   }
}


fun resolveConsentDecisionAction(consents: List<UIConsentItem>): String {
   val statuses = consents.mapNotNull {
       when (it.type) {
           UIConsentType.NECESSARY -> null
           UIConsentType.MARKETING,
           UIConsentType.FUNCTIONAL,
           UIConsentType.STATISTICS,
           UIConsentType.CUSTOM, UIConsentType.PRIVACY_POLICY,  -> if (it.accepted) "1" else "0"
       }
   }
   if (statuses.isEmpty()) return "no_consent"
   if (statuses.all { it == "0" }) return "no_consent"
   if (statuses.all { it == "1" }) return "full_consent"
   return "any_consent"
}

fun resolveConsentDecisionType(consents: List<UIConsentItem>, context: Context): String {
   val fingerprint = consents
       .filter { it.type != UIConsentType.NECESSARY }
       .joinToString("|") { "${it.type.name.lowercase()}:${if (it.accepted) "1" else "0"}" }


   val prefs = context.getSharedPreferences("pp_consents", Context.MODE_PRIVATE)
   val previous = prefs.getString("fingerprint", null)
   prefs.edit().putString("fingerprint", fingerprint).apply()


   return if (previous == null) "first_consent" else "changed_consent"
}

Create an account in Piwik PRO

To create an account in Piwik PRO, follow these steps:

1. Go to the Piwik PRO website at https://piwik.pro/business-plan-setup/.

Note: If you go directly to https://piwik.pro/business-plan-setup/, you’ll create a trial account. Later, you can upgrade to a plan of your choice.

2. Fill out the required fields:

Email – The email address you used to create your Cookie Information account
Website – The main website you want to track
Account name – Your organization or account name you used for your Cookie Information account

Note: Ideally, your Piwik PRO account name should match the one you use for your Cookie Information account. However, please be aware of these rules and limitations:

Account names must be 2–36 characters long.
Allowed characters: lowercase letters (a–z), digits (0–9), and hyphens (-).
Names cannot start or end with a hyphen.
At least one letter is required.
Your account name becomes part of your account URL address and is publicly visible – avoid using personal information.
The name must be available (not already taken). If the account name is already taken, you’ll see a notification and need to choose another one.

If your Cookie Information account name doesn’t meet these requirements, choose a different name that works best for you.

Note: Cookie Information account name

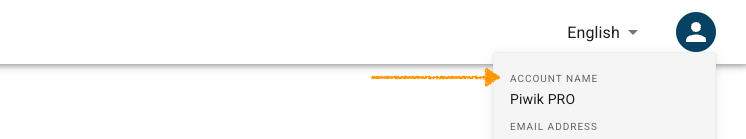

You can find your account name after you log in to your Cookie Information account. Click the user profile icon in the top right corner to see your account name.

3. Click Complete my Business Plan setup.

4. Go to your inbox.

5. Find the email from Piwik PRO.

Note: If you don’t see the email in a few minutes, check your spam folder.

6. Click Activate your account. You’ll be directed to the Piwik PRO platform, where you can set your password.

Note: If you have questions about your Piwik PRO account or the setup process, contact Piwik PRO Support at support@piwik.pro.

7. All done, once you set your password, your account is ready.

Review consent decisions in Piwik PRO

Review consent decisions in Piwik PRO, follow these steps:

1. Log in to Piwik PRO.

2. Go to Menu > Analytics.

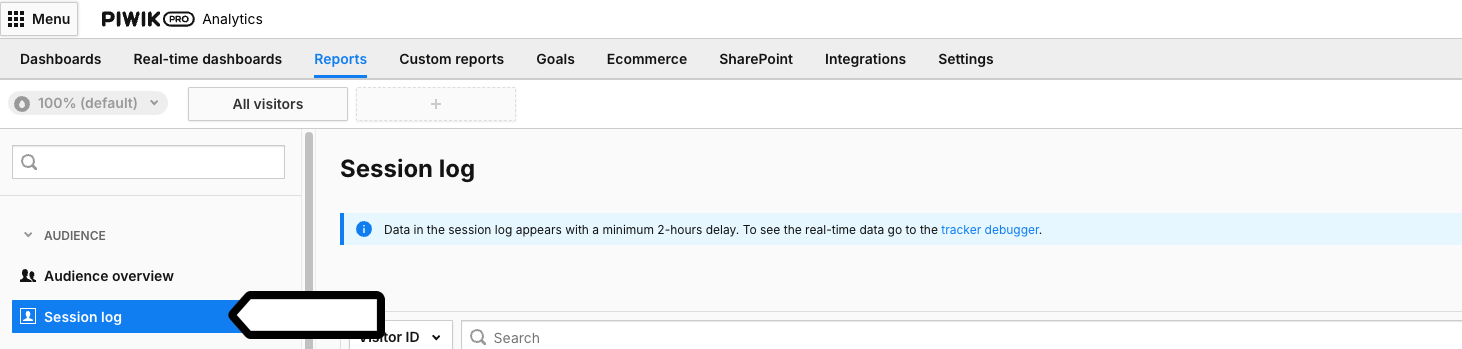

3. Navigate to Reports > Session log.

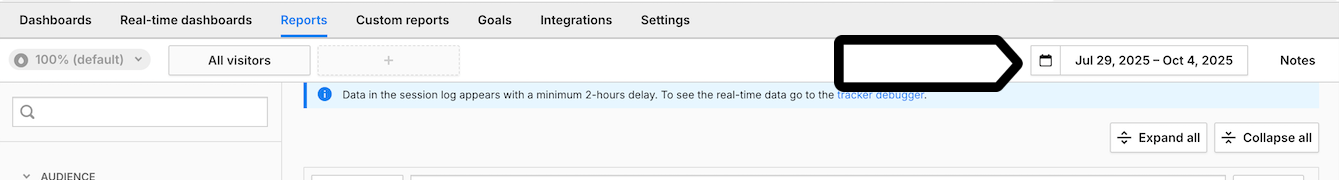

4. Choose the date range.

5. Choose the filter type: Visitor ID or User ID, and type the ID from the user. In our example, it is: VisitorID: b52c93c9101f94c5.

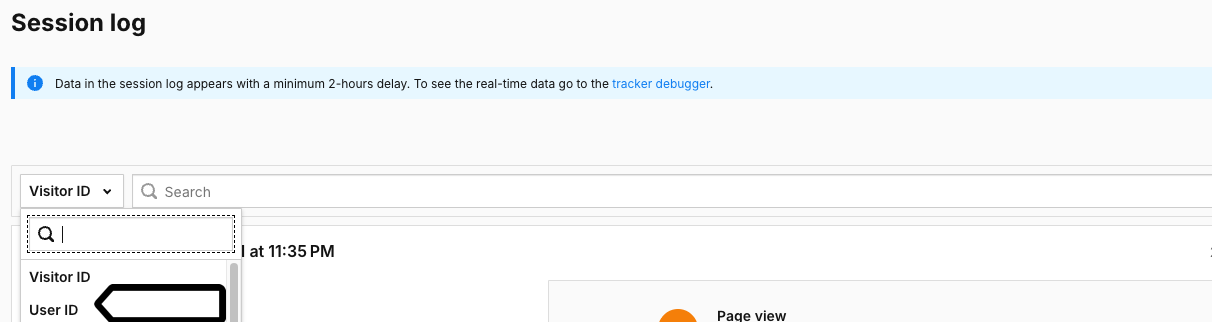

Note. If you’re using a User ID, you need to select User ID from the drop-down list and then paste the ID in the search field.

6. Click Search.

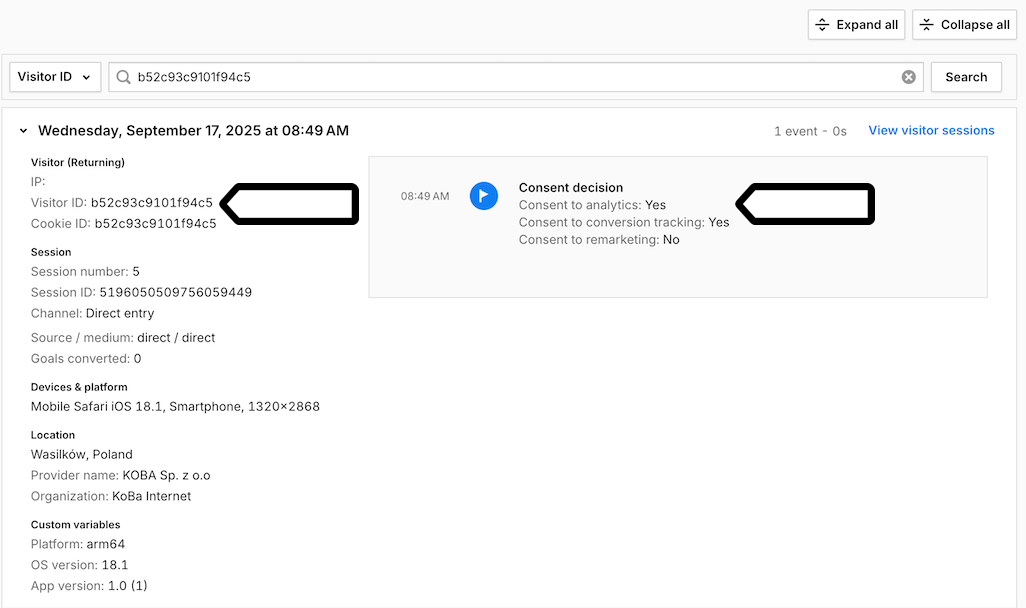

7. Now, we can see the log of the consent decision for the selected visitor ID.

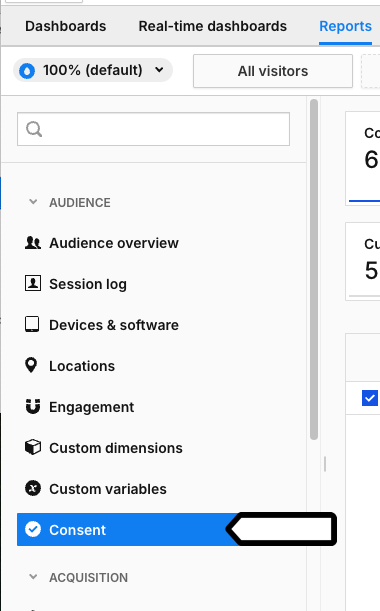

8. (Optional) If you want to check the breakdown of consent statistics by type, go to Reports > Consent.

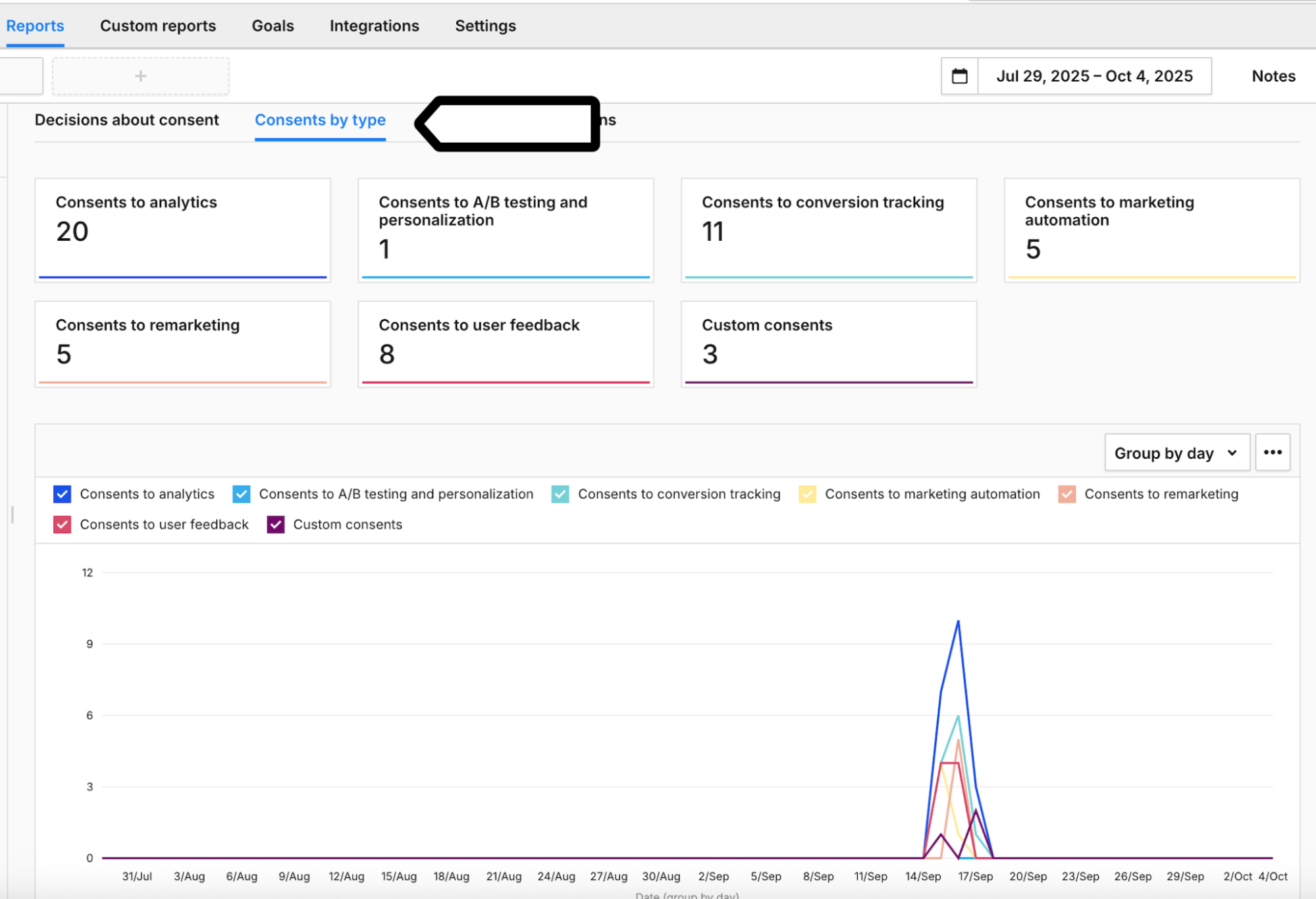

9. In Consent by type, you can see a diagram of all consent decisions within a selected time range.

10. All done.
